EURO-85P

TECHNICAL SPECIFICATION
No. of Colors 1
Doctoring Cup Dia [mm] 90
Print Speed [Max. /Hrs] 2400
Cliché/Plate Size [mm] 100 x 210
Print Image Size [ mm] 85
Product Height [mm]120
Power Consumption [W] 50
Control System Micro Processor
Control Voltage 12/24 VDC
Drive Electro Pneumatic
Operating Pressure 5-7 bar
Air Consumption [Lit/min.] 60
Power Supply 230 VAC/50Hz.
Dimensions (Approx)Length - 630 mm, Width - 240 mm, Height - 620 mm
Weight (Approx) 58 Kgs

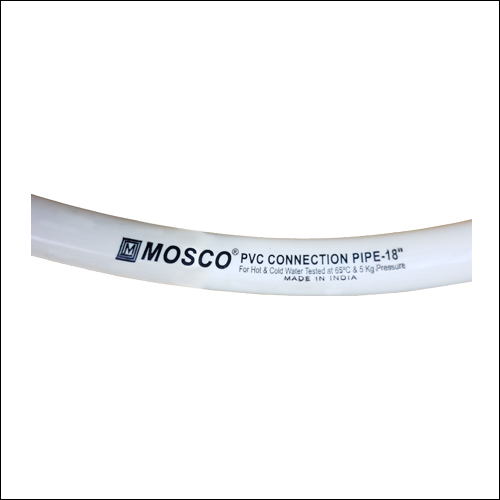

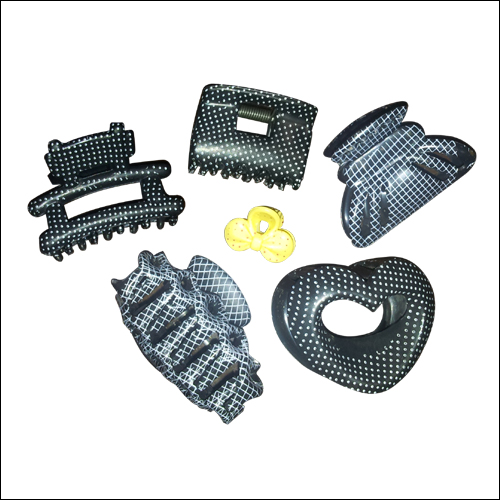

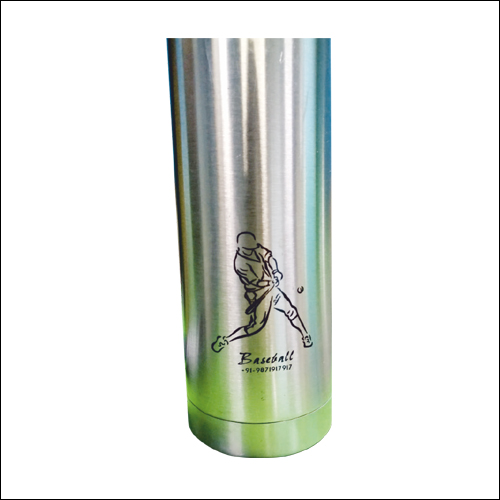

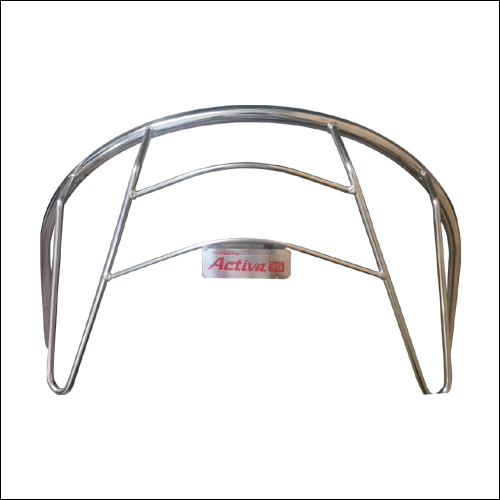

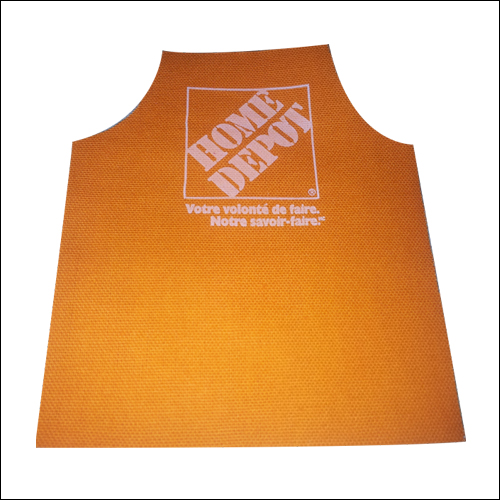

SAMPLES
