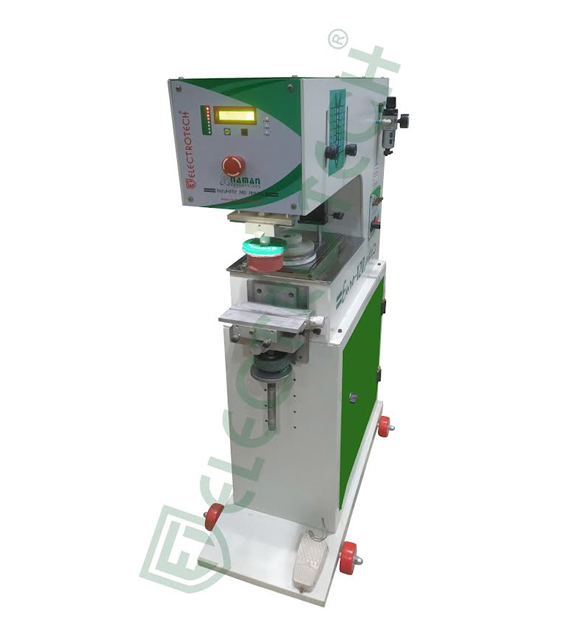

EURO-120PDX

TECHNICAL SPECIFICATION
No. of Colors 1
Doctoring Cup Dia [mm] 130
Print Speed [Max. /Hrs] 1500
Cliché/Plate Size [mm] 150 X 300
Print Image Size [ mm] 120
Product Height [mm]300
Power Consumption [W] 50
Control System Micro Processor
Control Voltage 12/24 VDC
Drive Electro Pneumatic
Operating Pressure 5-7 bar
Air Consumption [Lit/min.] 80
Power Supply 230 VAC/50Hz.
Dimensions (Approx)Length - 800 mm Width - 330 mm Height - 1260 mm
Weight (Approx) 126 Kgs


SAMPLES
