Pad Printing Rings

Metal, Carbide & Ceramic Rings Pad Printing Metal Rings Ceramic Rings and Carbide Rings for InkCup

There has been much debate as to which doctor ring material is best for doctoring printing plates. The market for pad printing supplies originally started with carbide steel doctor rings and many were successfully implemented, however, since the ceramic ring was brought to the market it has been extremely successful as well. We would guess that now the pad printing marketplace is evenly divided between the carbide ring and the new generation ceramic doctor ring. Today, both carbide rings and ceramic rings work extremely well. It is our opinion however, that the ceramic doctor ring offers some advantages.

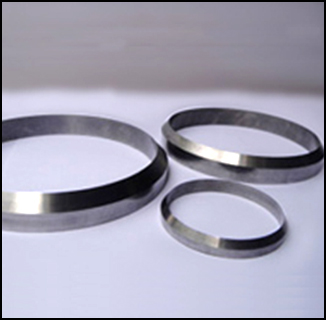

Metal Rings
Pad Printing Metal Rings for InkCup
Ring Material D (mm) Outer dia. d (mm) Inner dia. h (mm) Height
Carbide Ring (Tungsten steel Ring) 90 80 12
70 60 12
90 82 12
80 70 12
100 90 12
120 110 12
130 120 14
175 160 14

Ring Edges
  • SS=Single blade Single bevel
  • SD=Single blade Double bevel
  • DS=Double blades Single bevel
  • DD=Double blades Double bevel

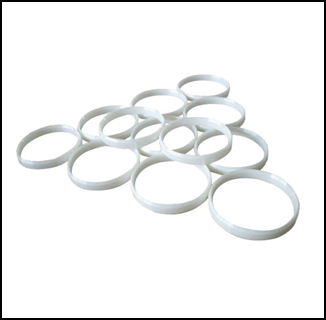

Ceramic Ring
Pad Printing Ceramic Rings for InkCup
Ring Material D (mm) Outer dia. d (mm) Inner dia. h (mm) Height
Ceramic 100 90 12
145 135 14
135 126 14
70 60 12
90 82 12
130 120 14
60 53 12
130 120 12
135 126 14
140 135 12
165 155 15
192 180 16
201 186 16

Ring Edges
  • SS=Single blade Single bevel
  • SD=Single blade Double bevel
  • DS=Double blades Single bevel
  • DD=Double blades Double bevel

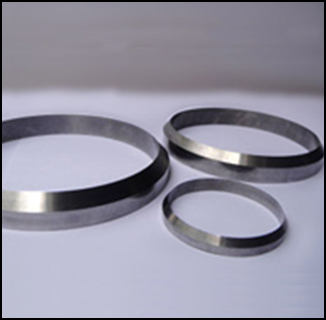

Carbide Rings
Pad Printing Carbide Rings for InkCup
Ring Material D (mm) Outer dia. d (mm) Inner dia. h (mm) Height
Carbide Ring (Tungsten steel Ring) 65 60 5.2
70 60 12
90 82 12
96 90 5.2
100 90 12
120 110 12
125 120 5.2
145 140 6
200 190 12

Ring Edges
  • SS=Single blade Single bevel
  • SD=Single blade Double bevel
  • DS=Double blades Single bevel
  • DD=Double blades Double bevel
