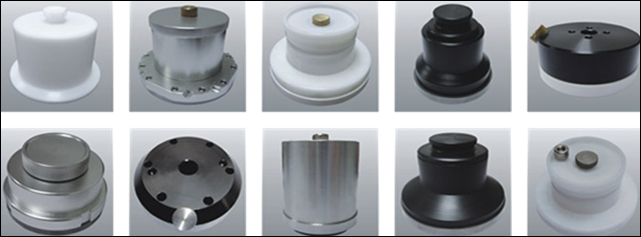

Ink Cups

"ELECTROTECH" is well equipped with its facilities of making specialized ink cups of various companies. We can make ink cups in any material like metal, aluminium and special engineering plastics.
TECHNICAL SPECIFICATION
Cup Body Material D (mm) Outer dia. d (mm) Inner dia. H (mm) Ring height Magnet
PL (Plastic cup) 65 60 5.2 0
96 90 5.2 0
125 120 5.2 0
135 130 5.2 0

Cup Body Material M (qty) Magnets D (mm) Outer dia. d (mm) Inner dia. H (mm) Ring height Ring Edge
AL (Aluminium cup) 6M 70 60 12 SS
8M 90 80 12 SS
8M 90 82 12 SS
8M 100 90 12 SS
12M 135 126 14 SS
12M 145 135 14 SS
