EURO-55P

TECHNICAL SPECIFICATION
No. of Colors 1
Doctoring Cup Dia [mm] 60
Print Speed [Max. /Hrs] 2400
Cliché/Plate Size [mm] 70 X 140
Print Image Size [ mm] 55
Product Height [mm]75
Power Consumption [W] 50
Control System Micro Processor
Control Voltage 12/24 VAC
Drive Electro Pneumatic
Operating Pressure 5-7 bar
Air Consumption [Lit/min.] 45
Power Supply 230 VAC/50Hz.
Dimensions (Approx)Length - 530 mm, Width - 260 mm, Height - 510 mm
Weight (Approx) 46 Kgs

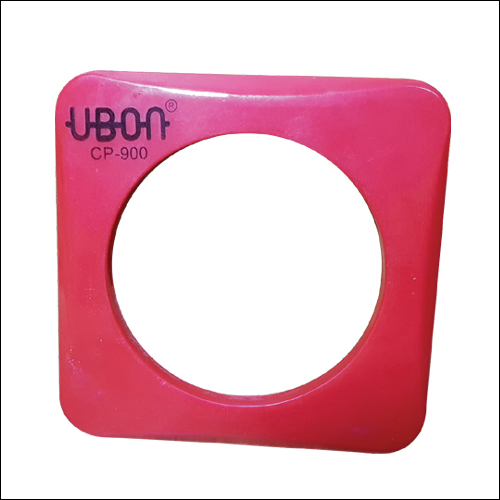

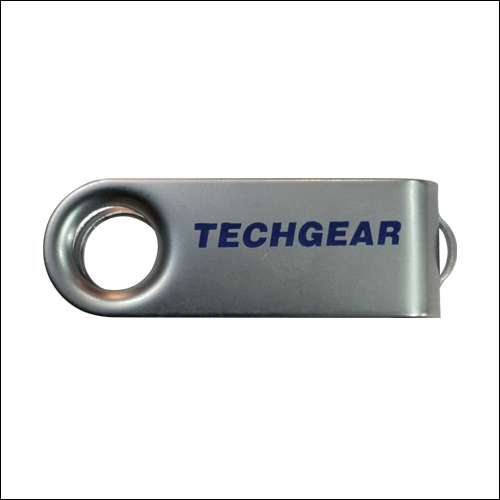

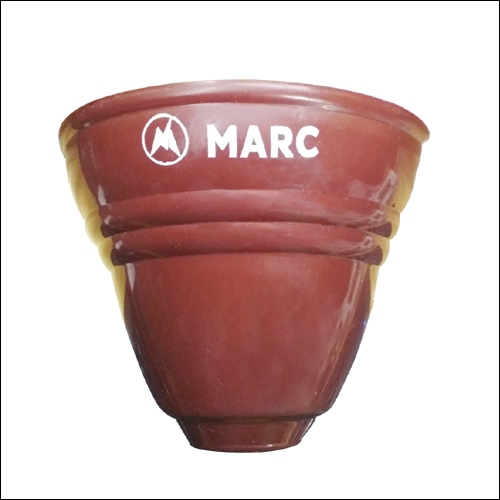

SAMPLES
