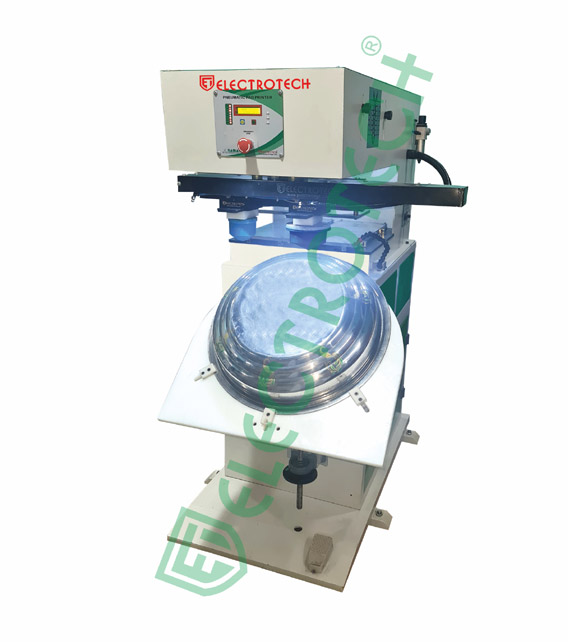

| Model No. | Euro-175dcsu |
| No. of Colors | 2 |
| Doctoring Cup Dia [mm] | 175 |
| Print Speed [Max./Hrs] | 300 |
| Cliche/Plate Size [mm] | 500 X 500 |
| Print Image Size [ømm] | 123 X 161 or 175 |
| Product Height [mm] | 600 |
| Power Consumption [W] | 50 |
| Control System | Micro Processor |
| Control Voltage | 12/24 VAC |
| Drive | Electro Pneumatic |
| Operating Pressure | 8-10 |
| Air Consumption [Lit/min.] | 180 |
| Power Supply | 230 VAC/50Hz. |
| Dimensions (Approx) | Length - 1250 mm |
| Width - 1000 mm | |
| Height - 1600 mm | |
| Weight (Approx) | 325 Kgs |
