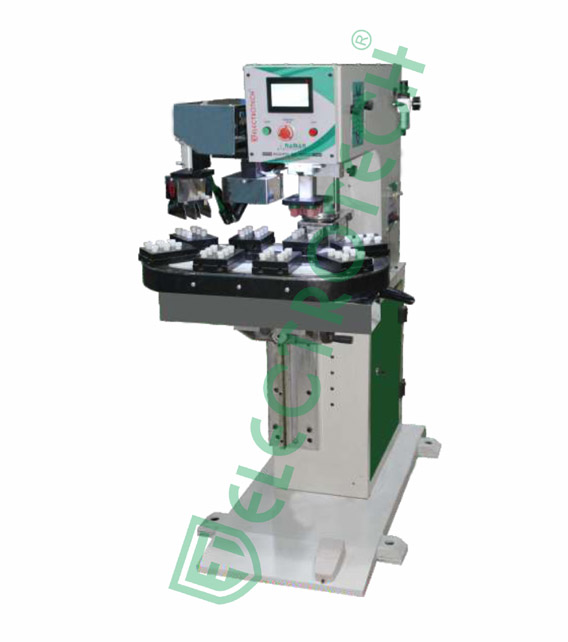

| Model No. | Euro-85-250pcae |
| No. of Colors | 1 |
| Doctoring Cup Dia [mm] | 90 |
| Print Speed [Max./Hrs] | 750X4 |
| Cliche/Plate Size [mm] | 100 X 250 |
| Print Image Size [ømm] | 85 |
| Product Height [mm] | 200 |
| Power Consumption [W] | 250 |
| Control System | PLC + HMI |
| Control Voltage | 12/24 VDC |
| Drive | Electro Mechanical |
| Operating Pressure | 7-9 |
| Air Consumption [Lit/min.] | 300 |
| Power Supply | 230 VAC/50Hz. |
| Dimensions (Approx) | Length - 920 mm |
| Width - 700 mm | |
| Height - 1350 mm | |
| Weight (Approx) | 210 Kgs |
