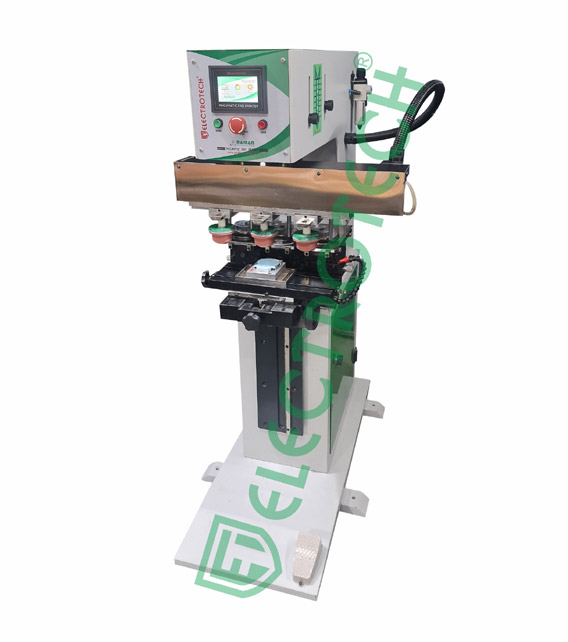

| Model No. | Euro-85-250tcsu |
| No. of Colors | 3 |
| Doctoring Cup Dia [mm] | 90 |
| Print Speed [Max./Hrs] | 540 |
| Cliche/Plate Size [mm] | 100 X 250 |
| Print Image Size [ømm] | 85 |
| Product Height [mm] | 400 |
| Power Consumption [W] | 50 |
| Control System | PLC with HMI |
| Control Voltage | 12/24 VDC |
| Drive | Electro Pneumatic |
| Operating Pressure | 6-8 |
| Air Consumption [Lit/min.] | 100 |
| Power Supply | 230 VAC/50Hz. |
| Dimensions (Approx) | Length - 860 mm |
| Width - 680 mm | |
| Height - 1465 mm | |
| Weight (Approx) | 160 Kgs |
