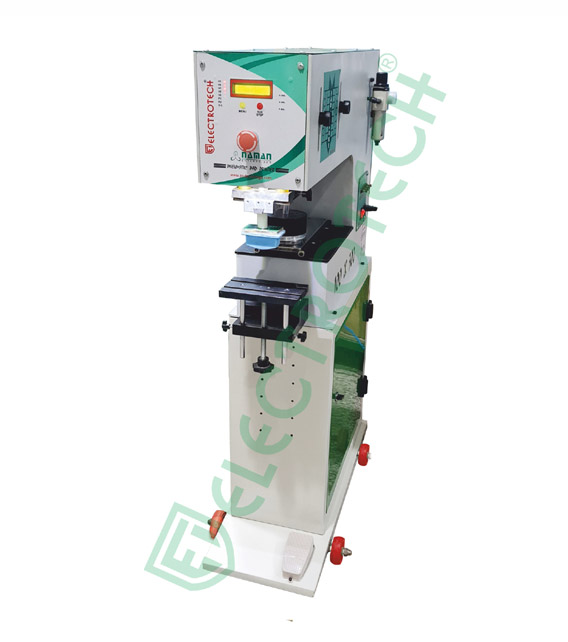

| Model No. | Euro-85-300pdx |
| No. of Colors | 1 |
| Doctoring Cup Dia [mm] | 90 |
| Print Speed [Max./Hrs] | 1200 |
| Cliche/Plate Size [mm] | 100 X 300 |
| Print Image Size [ømm] | 85 or 60mm X 150mm |
| Product Height [mm] | 400 |
| Power Consumption [W] | 50 |
| Control System | Micro Processor |
| Control Voltage | 12/24 VAC |
| Drive | Electro Pneumatic |
| Operating Pressure | 6-8 |
| Air Consumption [Lit/min.] | 80 |
| Power Supply | 230 VAC/50Hz. |
| Dimensions (Approx) | Length - 700 mm |
| Width - 510 mm | |
| Height - 1225 mm | |
| Weight (Approx) | 110 Kgs |
