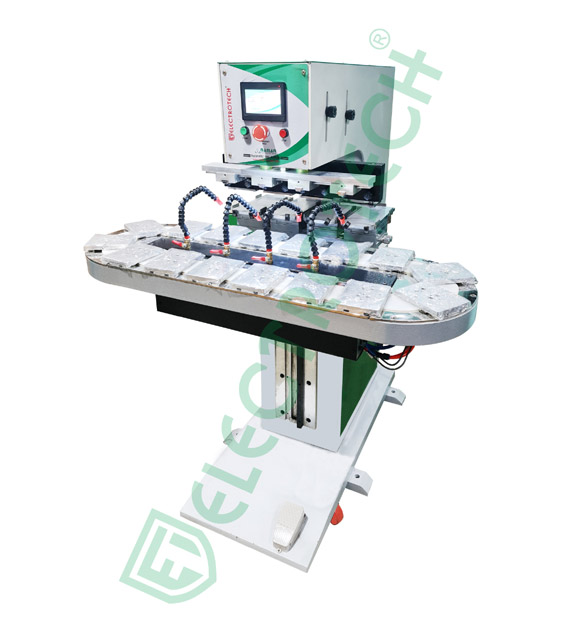

| Model No. | EURO-85/250FCC |
| No. of Colors | 4 |
| Doctoring Cup Dia [mm] | 90 |
| Print Speed [Max./Hrs] | 1000 |
| Cliche/Plate Size [mm] | 100 X 250 |
| Print Image Size [ømm] | 85 |
| Product Height [mm] | 200 |
| Power Consumption [W] | 50 |
| Control System | PLC with HMI |
| Control Voltage | 12/24 VAC |
| Drive | Electro Pneumatic |
| Operating Pressure[Bar] | 6-8 |
| Air Consumption [Lit/min.] | 140 |
| Power Supply | 230 VAC/50Hz. |
| Dimensions (Approx) | Length - 1010 mm |
| Width - 1090 mm | |
| Height - 1405 mm | |
| Weight (Approx) | 192 Kgs |
