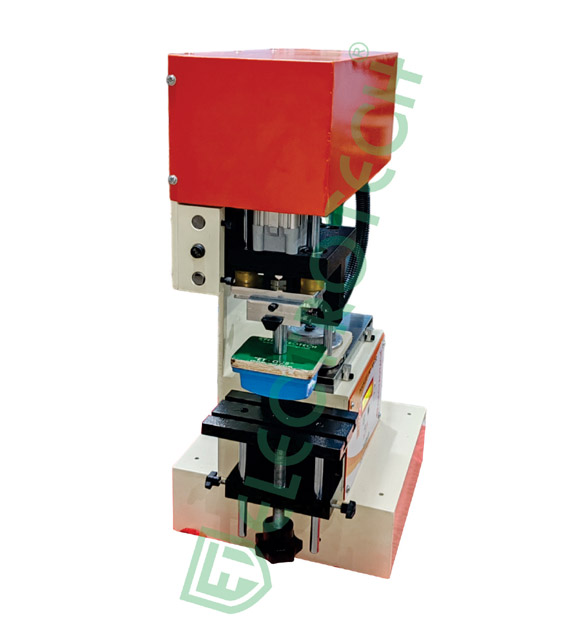

ECOO-OP-250

TECHNICAL SPECIFICATION
Model No. : Ecoo-OP 250
No. of Colors : 1
Doctoring Cup Dia [mm] : 90
Print Speed [Max./Hrs] : 2000
Cliche/Plate Size [mm] : 100 X 250
Print Image Size [mm] : 60 X 110 or Ø 80
Product Height [mm] : 200
Power Consumption [W] : 50
Control System : Micro Processor
Control Voltage : 12/24 VAC
Drive : Electro Pneumatic
Operating Pressure[Bar] : 5-7
Air Consumption [Lit/min.] : 100
Power Supply : 230 VAC/50Hz.
Dimensions (Approx) [mm] : Length - 750 mm
Width - 330 mm
Height - 700 mm
Weight (Approx) [Kgs]: 49 Kgs


SAMPLES
