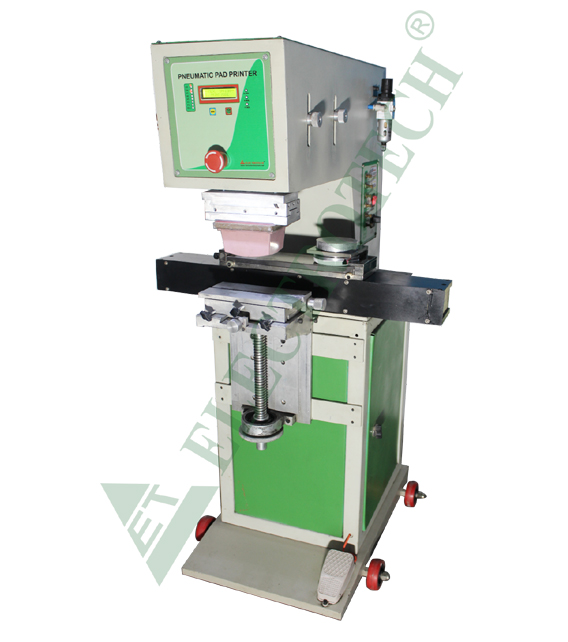

EURO-6 INCH

TECHNICAL SPECIFICATION
No. of Colors 1
Doctoring Cup Dia [mm] 90
Print Speed [Max. /Hrs] 600
Cliché/Plate Size [mm] 100 X 300
Print Image Size [ mm] 75 X 150
Product Height [mm]200
Power Consumption [W] 50
Control System Micro Processor
Control Voltage 12/24 VAC
Drive Electro Pneumatic
Operating Pressure 5-7 bar
Air Consumption [Lit/min.] 130
Power Supply 230 VAC/50Hz.
Dimensions (Approx)Length - 640 mm, Width - 690 mm, Height - 1190 mm
Weight (Approx) 120 Kgs

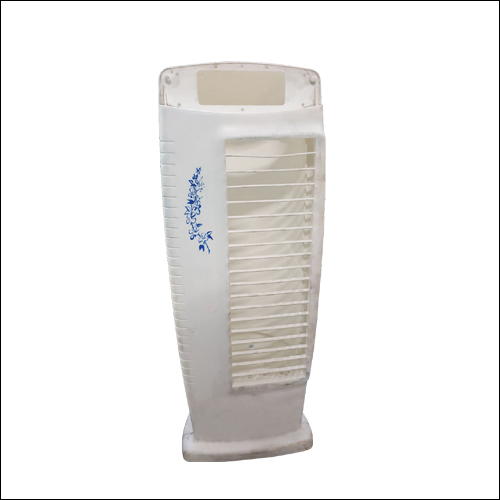

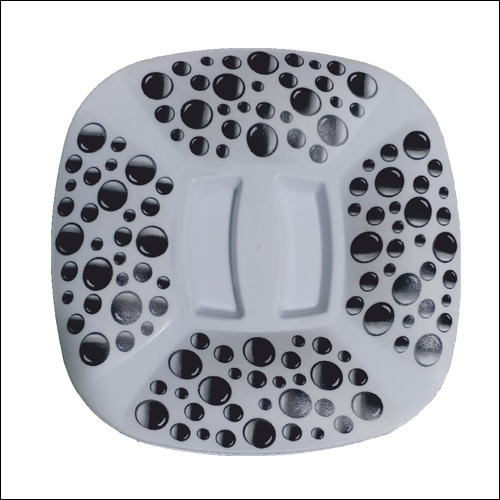

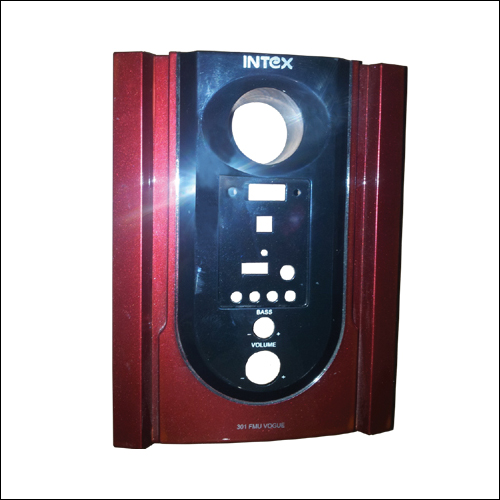

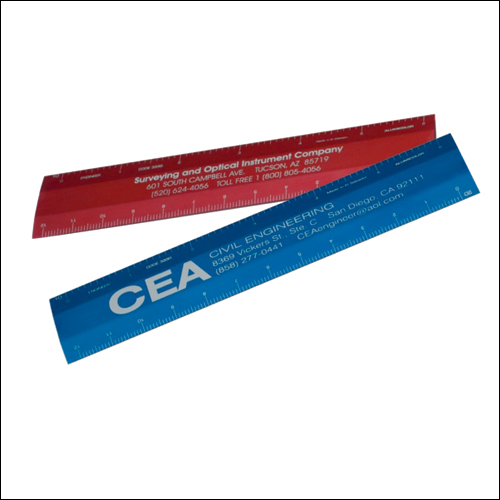

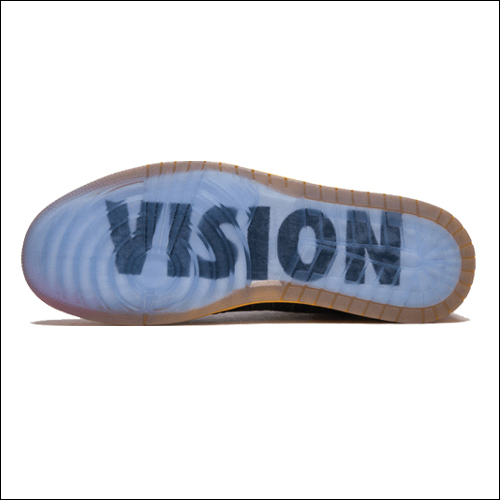

SAMPLES
