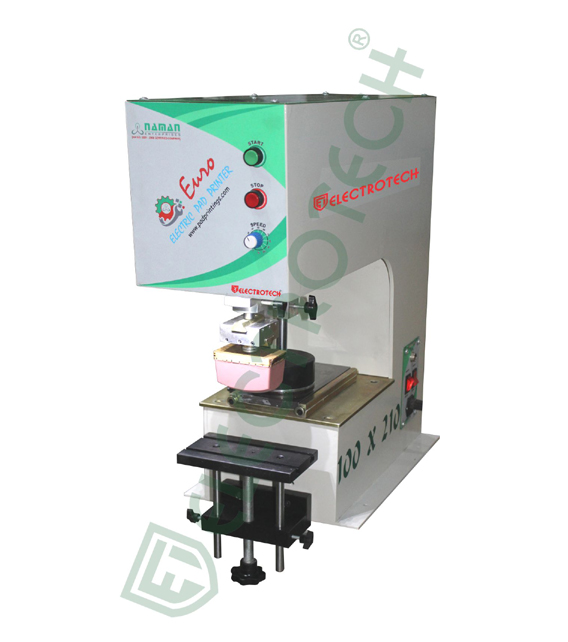

EURO-85E

TECHNICAL SPECIFICATION
No. of Colors 1
Doctoring Cup Dia [mm] 90
Cliche/Plate Size [mm] 100 x 210
Print Speed [Max./Hrs] 2000
Print Image Size [ mm] 85
Product Height [mm]120
Power Consumption [W] 250
Control System Electrical
Control Voltage 09/12 VDC
Drive Electro Mechanical
Operating Pressure Not Required
Air Consumption [Lit/min.] No
Power Supply 230 VAC/50Hz
Dimensions (Approx)Length - 640 mm, Width - 270 mm, Height - 590 mm
Weight (Approx) 82 Kgs

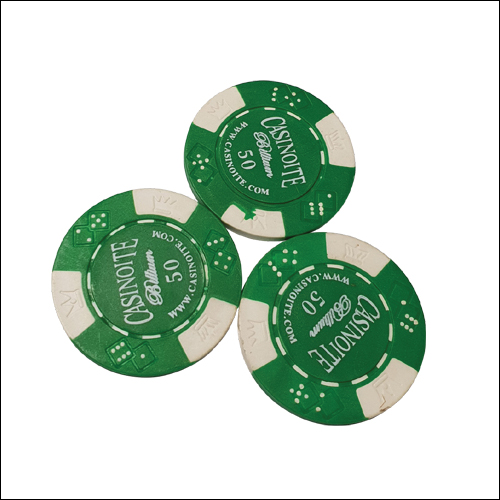

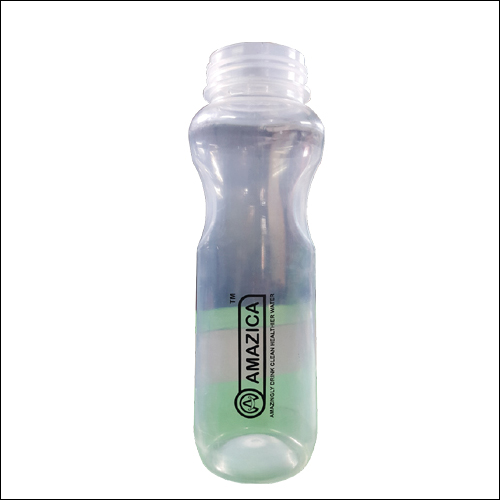

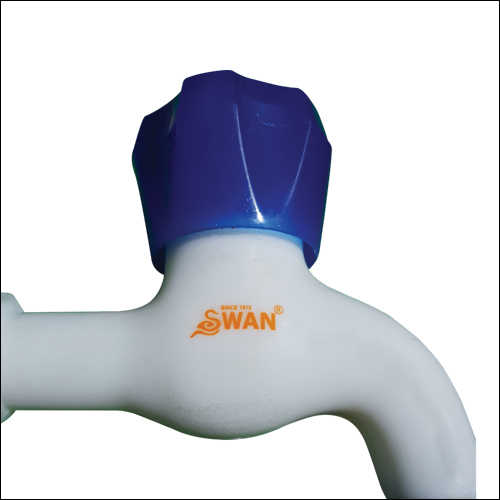

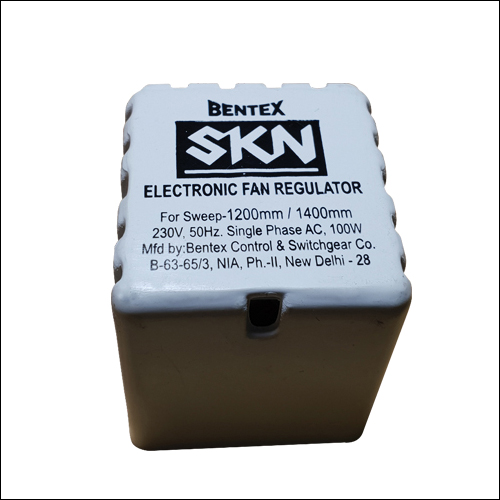

SAMPLES
