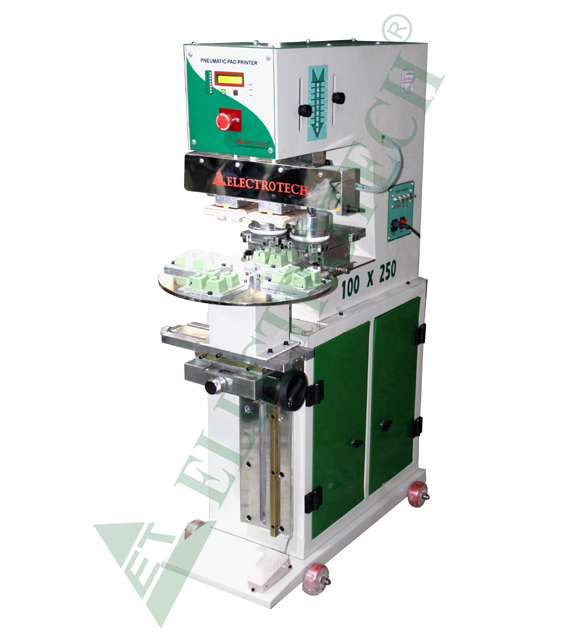

EURO-85/250 DCSUI

TECHNICAL SPECIFICATION
No. of Colors 2
Doctoring Cup Dia [mm] 90
Print Speed [Max. /Hrs] 800
Cliché/Plate Size [mm] 100 x 250
Printing Image Size [Ø] 80
Product Height [mm] 200
Power Consumption [W] 50
Control System Micro Processor
Control Voltage 12/24 VAC
Drive Electro Pneumatic
Operating Pressure 6-8 bar
Air Consumption [Lit/min.] 120
Power Supply 230 VAC/50Hz.
Dimensions (Approx) Length - 750 mm , Width - 300 mm , Height - 1400 mm
Weight (Approx) 160 Kgs

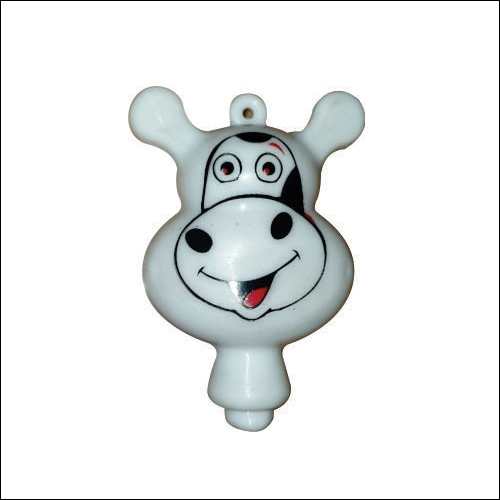

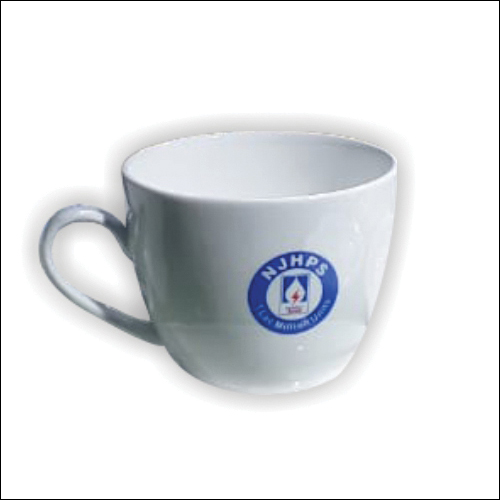

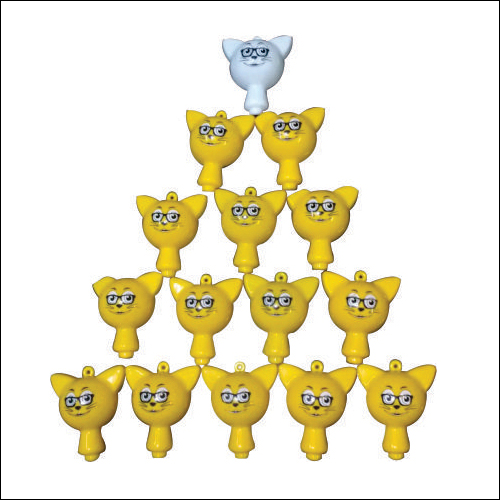

SAMPLES
