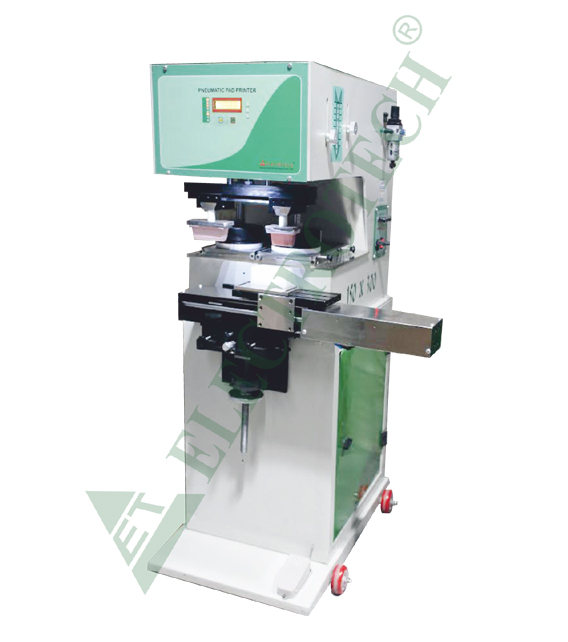

EURO-120DCS

TECHNICAL SPECIFICATION
No. of Colors 2
Doctoring Cup Dia [mm] 130
Print Speed [Max. /Hrs] 600
Cliché/Plate Size [mm] 150 X 300
Print Image Size [ mm] 120
Product Height [mm]200
Power Consumption [W] 50
Control System Micro Processor
Control Voltage 12/24 VDC
Drive Electro Pneumatic
Operating Pressure 5-7 bar
Air Consumption [Lit/min.] 160
Power Supply 230 VAC/50Hz.
Dimensions (Approx)Length - 900 mm, Width - 950 mm, Height - 1420 mm
Weight (Approx) 215 Kgs

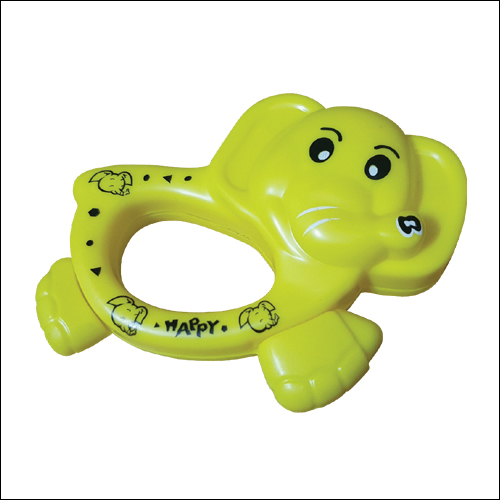

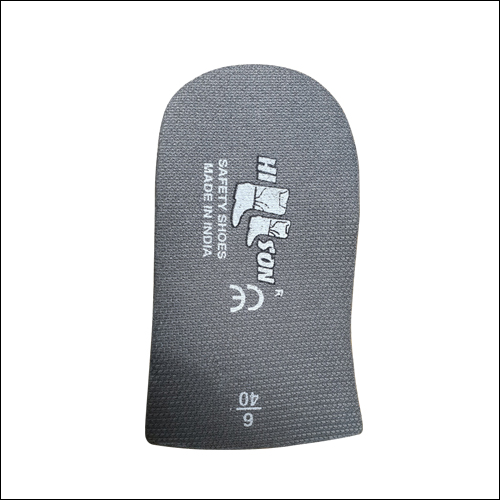

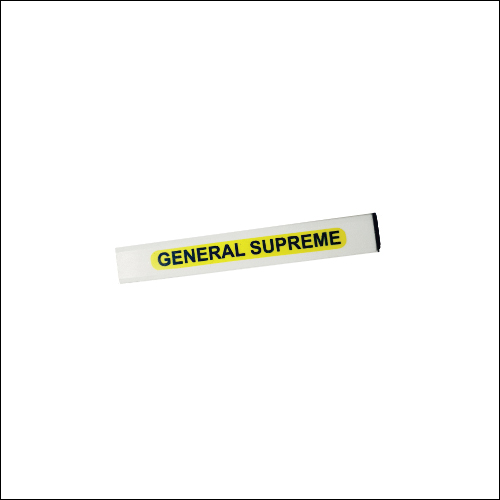

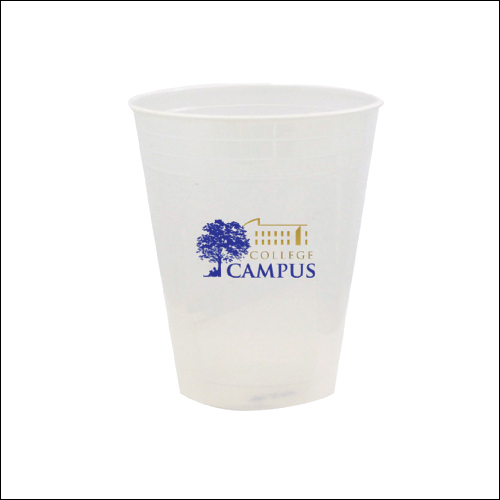

SAMPLES
