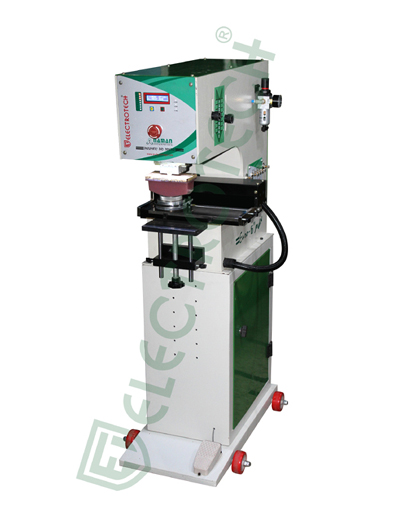

EURO-85HPDX

TECHNICAL SPECIFICATION
Model No.EURO-85HPDX
No. of Colors 1
Doctoring Cup Dia [mm] 90
Print Speed [Max. /Hrs] 1200
Cliché/Plate Size [mm] 100X 300
Print Image Size [ mm] 150X75
Product Height [mm]450
Power Consumption [W] 10
Control System Micro Processor
Control Voltage 12/24 VAC
Drive Electro Pneumatic
Operating Pressure 5-7 bar
Air Consumption [Lit/min.] 130
Power Supply 230 VAC/50Hz.
Dimensions (Approx)Length - 700 mm, Width - 400 mm, Height - 1350 mm
Weight (Approx) 96 Kgs
