Home » Our Products » Pad Printing Machine » Pneumatic Pad Printing Machine » EURO-85FCS

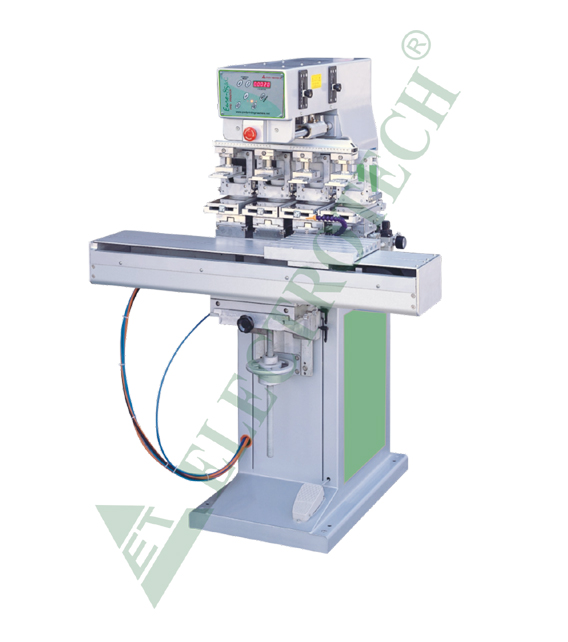

EURO-85FCS

TECHNICAL SPECIFICATION
No. of Colors 4
Doctoring Cup Dia [mm] 90
Print Speed [Max. /Hrs] 500
Cliché/Plate Size [mm] 100 X 250
Print Image Size [ mm] 85
Product Height [mm]200
Power Consumption [W] 50
Control System Micro Processor
Control Voltage 12/24 VDC
Drive Electro Pneumatic
Operating Pressure 5-7 bar
Air Consumption [Lit/min.] 140
Power Supply 230 VAC/50Hz.
Dimensions (Approx)Length - 700 mm, Width - 750 mm, Height - 1380 mm
Weight (Approx) 150 Kgs


SAMPLES
