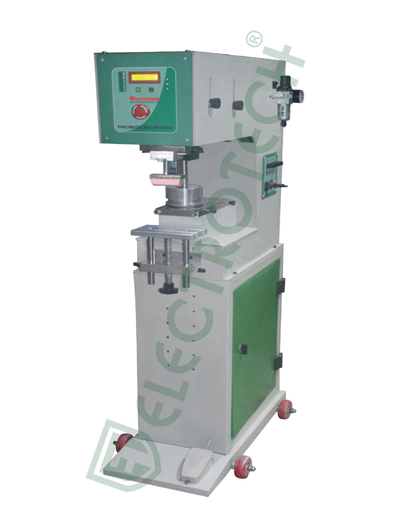

EURO-85/300PDX

TECHNICAL SPECIFICATION
Model No.EURO-85/300pdx
No. of Colors 1
Doctoring Cup Dia [mm] 90
Print Speed [Max. /Hrs] 1200
Cliché/Plate Size [mm] 100X 300
Print Image Size [ mm] 85or60mm X 125
Product Height [mm]400
Power Consumption [W] 50
Control System Micro Processor
Control Voltage 12/24 VAC
Drive Electro Pneumatic
Operating Pressure 5-7 bar
Air Consumption [Lit/min.] 80
Power Supply 230 VAC/50Hz.
Dimensions (Approx)Length - 750 mm, Width - 300 mm, Height - 1400 mm
Weight (Approx) 130 Kgs

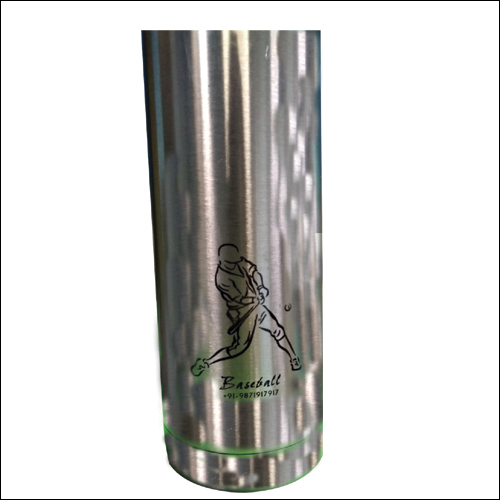

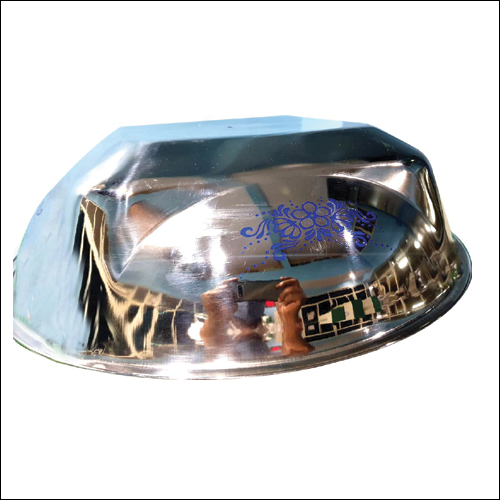

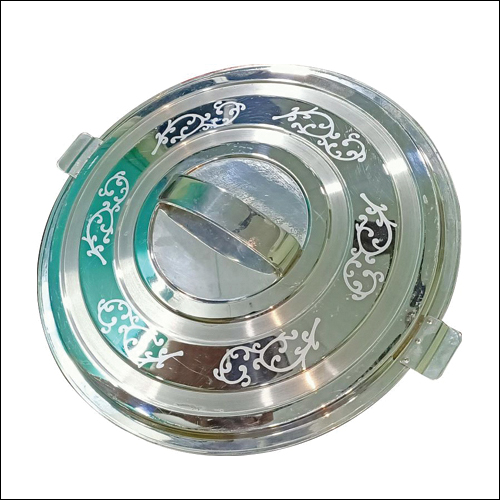

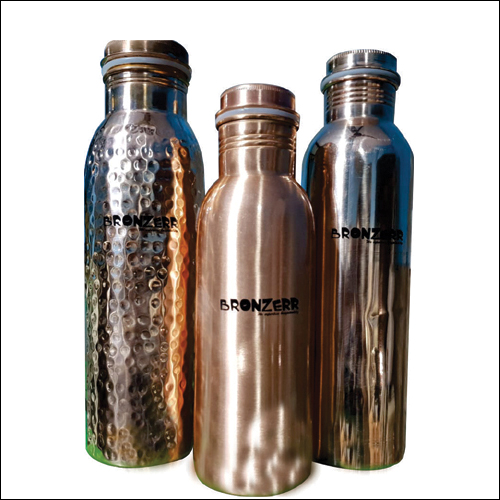

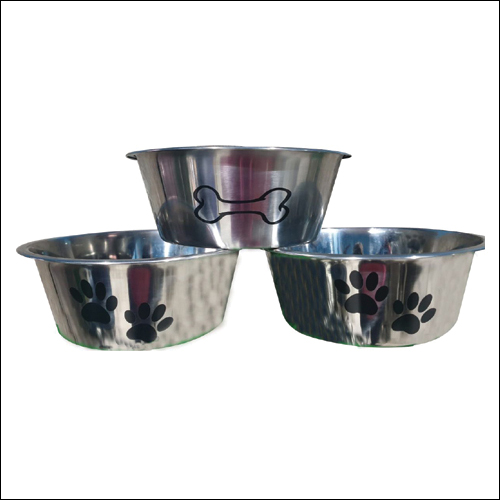

SAMPLES
